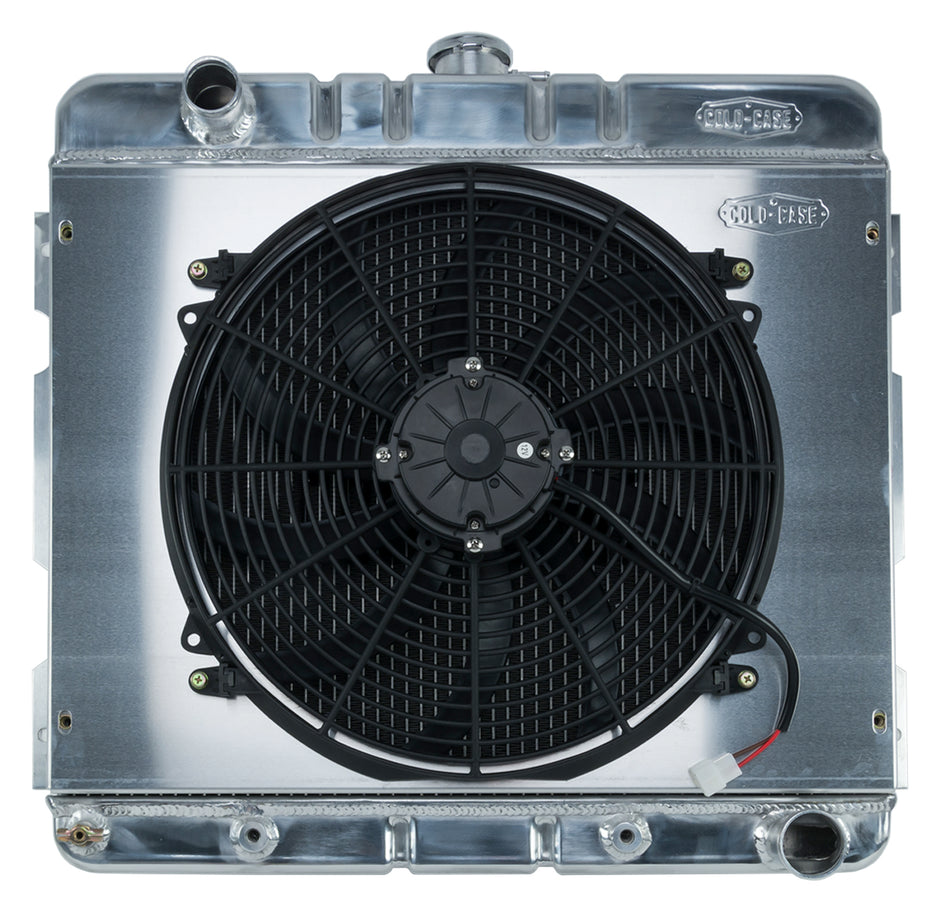

70-72 A,B Body SB Aluminum Performance Radiator And 16 Inch Fan Kit AT 17x22 Inch Cold Case Radiators

1970-1972 Mopar A,B Body Small Block Aluminum Performance Radiator and 16 inch fan kit. AT Cars.

Fits some of the following. Double check dimensions

• 71-74 Barracuda
• 70-72 Dart
• 71-72 Demon
• 71-72 Duster
• 71-72 Valiant

These COLD-CASE radiators are Tig welded 100 percent aluminum and absolutely beautiful. Don't buy a 3 or 4 row aluminum radiator! It doesn't cool as good as these oversize 2 row models.

These radiators are original appearing and have the correct stamping. Once painted, you'd be hard pressed to find a difference over an original versus a COLD-CASE.

• 100 percent TIG welded
• Fan Diameter 16 Inch
• All Aluminum
• (2) 1.25 inch Tubes
• Polished OE style tanks
• 16 fins per inch
• Corrugated fins that give more surface area and more thermal transfer
• Pressure tested
• For Automatic trans
• Old Part Number: RPE755AK

Radiator Specs

• Core Height 17 inch
• Core Width 22 inch
• Overall Height 22.5 inch
• Overall Width 25 inch
• Overall Thickness 6 inch
• Tubes (2) 1.25 inch Tubes
• Upper Hose 1.50 inch
• Lower Hose 1.75 inch
