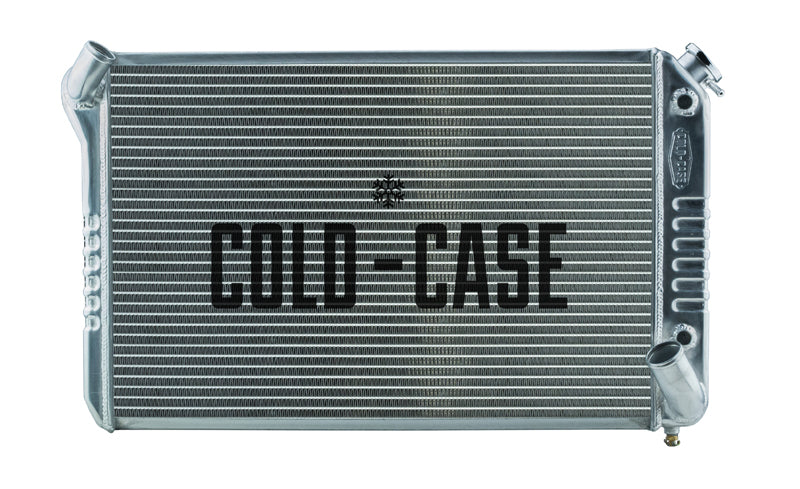

69-72 Corvette SB Aluminum Radiator Cold Case Radiators

69-72 Corvette SB Aluminum Radiator. 1969-1972 Corvette Small Block Aluminum Performance Radiator. MT and AT Cars. These COLD-CASE radiators are Tig welded 100 percent aluminum and absolutely beautiful. Don't buy a 3 or 4 row aluminum radiator! It doesn't cool as good as these oversize 2 row models.

These radiators are original appearing and have the correct stamping. Once painted, you'd be hard pressed to find a difference over an original versus a COLD-CASE.

• 100 percent TIG welded
• All Aluminum
• Polished OE style tanks
• 16 fins per inch
• Corrugated fins that give more surface area and more thermal transfer
• Pressure tested
• For manual/auto trans
• Direct fitment for 69-72 Corvette Small Block
• Old Part Number: RPE714

Radiator Specs

• Core Height 17 inch
• Core Width 26.25 inch
• Overall Height 19.5 inch
• Overall Width 31.75 inch
• Overall Thickness 3 inch
• Upper Hose 1.5 inch
• Lower Hose 1.75 inch
• Tubes (2) 1 inch Tubes
