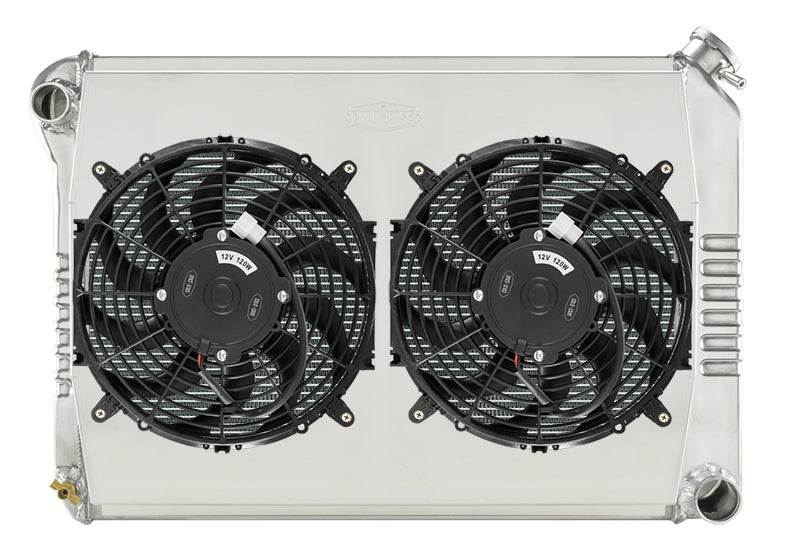

68-79 Nova Big Block Dual 12 Inch Fans Manual Trans Cold Case Radiators

68-79 Chevrolet Nova Big Block Aluminum Performance Radiator And Dual 12 Inch Fan Kit. MT Transmission. This radiator sites in saddle mounts. Comes without brackets. For bracket version, see CHC11.

When you need the biggest and best, look no further than the Cold Case Super Duty Line. All Super Duty kits include 2 row radiators with 1.25 inch tubes, aluminum fan shroud and this application now includes dual 12 inch fans, flowing at 1400cfm per fan! For extreme horsepower applications OR if you just want the best of the best. Also perfect for cars with not much clearance.

These COLD-CASE radiators are Tig welded 100 percent aluminum and absolutely beautiful. Don't buy a 3 or 4 row aluminum radiator! It doesn't cool as good as these oversize 2 row models.

These radiators are original appearing and have the correct stamping. Once painted, you'd be hard pressed to find a difference over an original versus a COLD-CASE.

• 100 percent TIG welded
• Fan Diameter 16 Inch
• All Aluminum
• Polished OE style tanks
• (2) 1.25 inch Tubes
• 16 fins per inch
• Corrugated fins that give more surface area and more thermal transfer
• Pressure tested
• For automatic transmission
• Direct fitment for 68-79 Nova w/ Big Block
• Old Part Number:RPE548TFK

Radiator Specs

• Core Height 16.85 inch
• Core Width 23 inch
• Overall Height 19 inch
• Overall Width 28.35 inch
• Overall Thickness 6.25 inch
• Tubes (2) 1.25 inch Tubes
• Upper Hose 1.50 inch
• Lower Hose 1.75 inch
