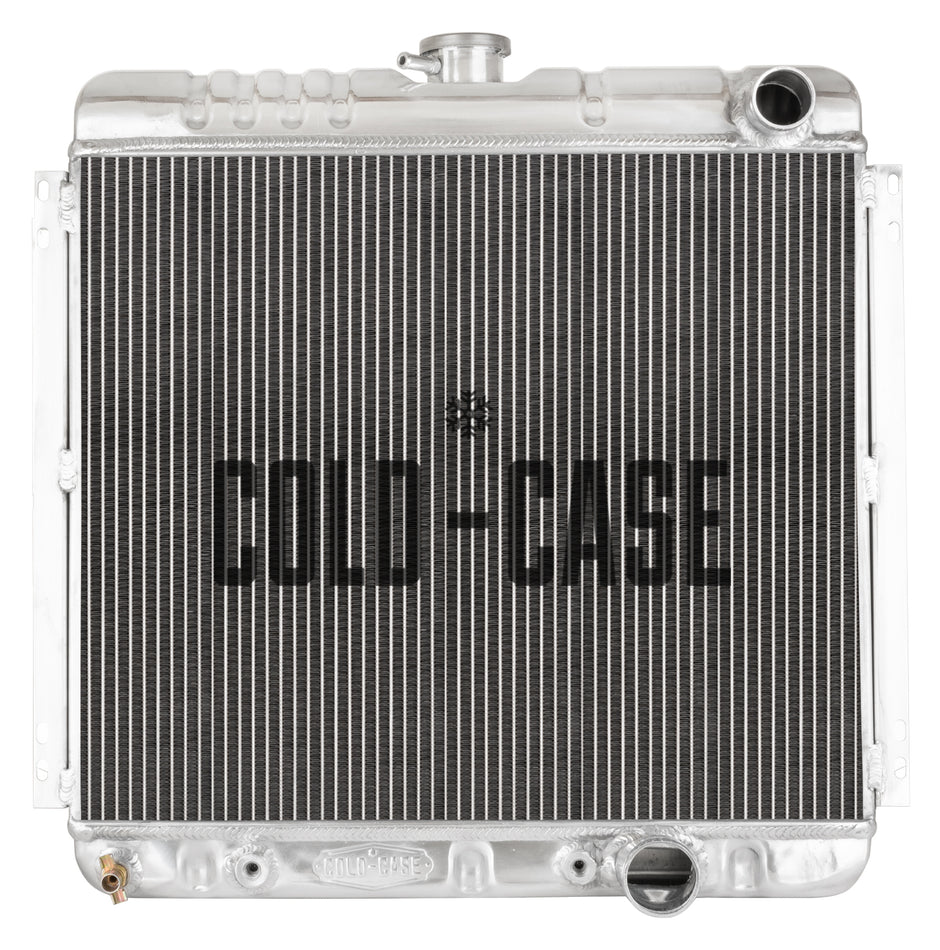

67-70 Mustang 289/302 Fair Coug Gal Aluminum Performance Radiator 20 Inch AT Cold Case Radiators

1967-1969 Mercury Cougar Small Block Aluminum Performance Radiator. AT Cars.

• 67-68 289 with X/C AC
• 68-69 302 with X/C AC
• 1969 351W

These COLD-CASE radiators are Tig welded 100 percent aluminum and absolutely beautiful. Don't buy a 3 or 4 row aluminum radiator! It doesn't cool as good as these oversize 2 row models.

These radiators are original appearing and have the correct stamping. Once painted, you'd be hard pressed to find a difference over an original versus a COLD-CASE.

• 100 percent TIG welded
• All Aluminum
• Polished OE style tanks
• 16 fins per inch
• Corrugated fins that give more surface area and more thermal transfer
• Pressure tested
• For Automatic trans
• Direct fitment for 67-69 Cougar 289/302/351
• Old Part Number: RPE561

Radiator Specs

• Core Height 16.5 inch
• Core Width 19.6 inch
• Overall Height 20.5 inch
• Overall Width 22.4 inch brackets
• Overall Thickness 3 inch
• Tubes (2) 1.25 inch Tubes
• Upper Hose 1.50 inch
• Lower Hose 1.77 inch
