67-69 F Body Dual 12 Inch Fan Kit Manual Trans Cold Case Radiators

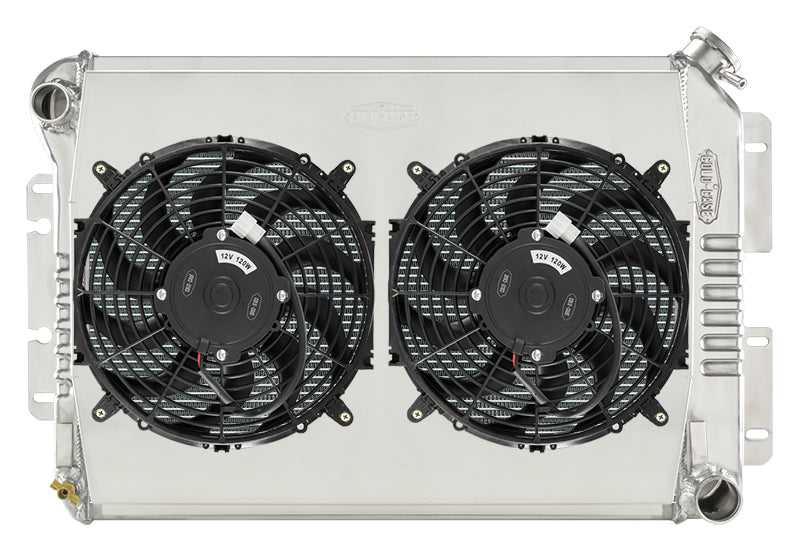

67-69 Camaro Big Block / Firebird Manual Transmission Aluminum Radiator and Dual 12 Inch Fan Kit. MT Cars. Also fits 68-71 Nova big block cars with bracket mounted radiators.

When you need the biggest and best, look no further than the Cold Case Super Duty Line. All Super Duty kits include 2 row radiators with 1.25 inch tubes, aluminum fan shroud and this application now includes dual 12 inch fans, flowing at 1400cfm per fan! For extreme horsepower applications OR if you just want the best of the best. Also perfect for cars with not much clearance.

These COLD-CASE radiators are Tig welded 100 percent aluminum and absolutely beautiful. Don't buy a 3 or 4 row aluminum radiator! It doesn't cool as good as these oversize 2 row models.

These radiators are original appearing and have the correct stamping. Once painted, you'd be hard pressed to find a difference over an original versus a COLD-CASE.

• 100 percent TIG welded
• (2) 1.25 inch Rows
• All Aluminum
• Polished OE style tanks
• 16 fins per inch
• Corrugated fins that give more surface area and more thermal transfer
• Pressure tested
• For standard trans (NO trans-cooler)
• Direct fitment for 67-69 Camaro BB/Firebird

Radiator Specs

• Core Height 16.85 inch
• Core Width 23 inch
• Overall Height 18.5 inch
• Overall Width 27.5 inch
• Overall Thickness 6.25 inch
• Tubes (2) 1.25 inch Tubes
• Upper Hose 1.50 inch
• Lower Hose 1.75 inch
• Trans Cooler Fitting: 5/16 inch Inverted Flare

Trans Cooler Fitting Size:

5/16 Inch Inverted Flare
