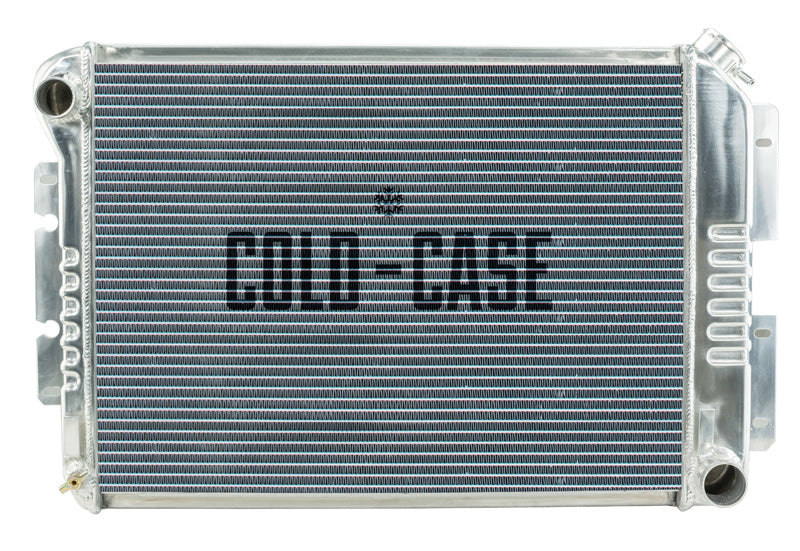

67-69 Camaro BB / Firebird Manual Transmission Aluminum Cold Case Radiators

1967-1969 GM F-Body Aluminum Performance Radiator. MT Cars. These COLD-CASE radiators are Tig welded 100 percent aluminum and absolutely beautiful. Don't buy a 3 or 4 row aluminum radiator! It doesn't cool as good as these oversize 2 row models.

These radiators are original appearing and have the correct stamping. Once painted, you'd be hard pressed to find a difference over an original versus a COLD-CASE.
Fits:
67-69 Firebird ALL
67-69 Camaro w/ Big Block
- Can be used on SB cars. Will need to swap out fan shroud.
68-71 Nova BB w/ bracket mount

Details:

• 100 percent TIG welded
• All Aluminum
• Polished OE style tanks
• (2) 1.25 inch Tubes
• 16 fins per inch
• Corrugated fins that give more surface area and more thermal transfer
• Pressure tested
• For Manual trans
• Direct fitment for 67-69 Camaro BB/Firebird/Trans Am
• Old Part Number: RFE11L

Radiator Specs

• Core Height:16.85 inch
• Core Width: 23 inch
• Overall Height: 18.5 inch
• Overall Width:27.5 inch
• Overall Thickness: 3 inch
• Tubes (2) 1.25 inch Tubes
• Upper Hose 1.50 inch
• Lower Hose 1.75 inch
