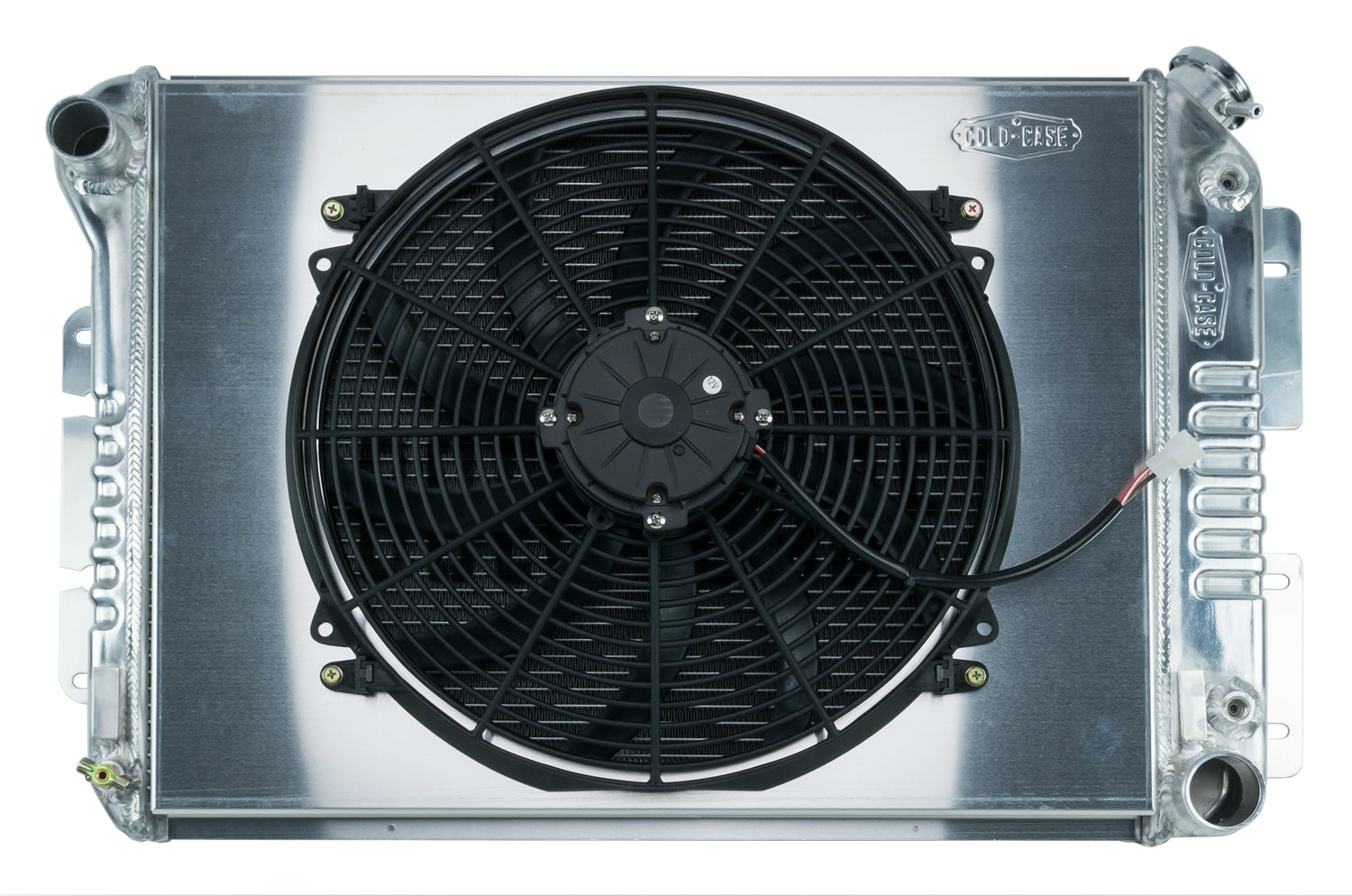

67-69 Camaro BB / Firebird Auto Transmission Aluminum Radiator and 16 Inch Fan Kit Cold Case Radiators

67-69 Camaro BB / Firebird Auto Transmission Aluminum Radiator and 16 Inch Fan Kit. AT Cars. These radiators are original appearing and have the correct stamping. Once painted, you'd be hard pressed to find a difference over an original versus a COLD-CASE.

These COLD-CASE radiators are Tig welded 100 percent aluminum and absolutely beautiful. Don't buy a 3 or 4 row aluminum radiator! It doesn't cool as good as these oversize 2 row models.
Fits:

• 67-69 Firebird
• 67-69 Camaro
• 68-71 Nova w/ bracket mount

Details:

• 100 percent TIG welded
• Fan Diameter 16 Inch
• All Aluminum
• Polished OE style tanks
• (2) 1.25 inch Tubes
• 16 fins per inch
• Corrugated fins that give more surface area and more thermal transfer
• Pressure tested
• For automatic transmission
• Direct fitment for 67-69 Camaro BB/Firebird/Trans Am
• Old Part Number: RFE11AL

Radiator Specs

• Core Height 16.85 inch
• Core Width 23 inch
• Overall Height 18.5 inch
• Overall Width 27.5 inch
• Overall Thickness 6 inch
• Tubes (2) 1.25 inch Tubes
• Upper Hose 1.50 inch
• Lower Hose 1.75 inch
