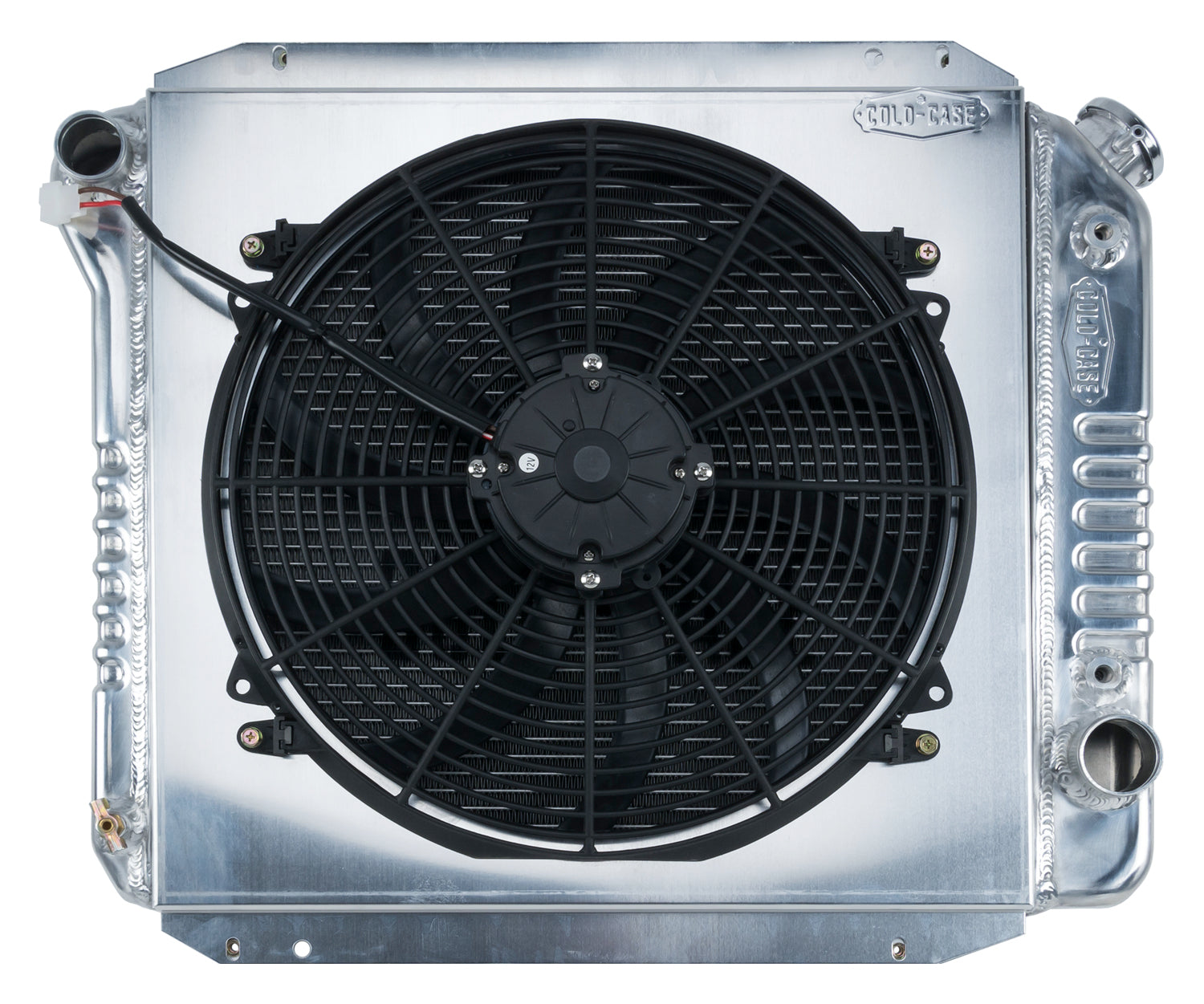

66-77 Ford Bronco Aluminum Performance Radiator And 16 Inch Fan Kit Cold Case Radiators

66-77 Ford Bronco Aluminum Performance Radiator And 16 Inch Fan Kit. These COLD-CASE radiators are Tig welded 100 percent aluminum and absolutely beautiful.

Don't buy a 3 or 4 row aluminum radiator! It doesn't cool as good as these oversize 2 row models. These radiators are original appearing and have the correct stamping. Once painted, you'd be hard pressed to find a difference over an original versus a COLD-CASE.

• 100 percent TIG welded
• Fan Diameter 16 Inch
• All Aluminum
• Polished OE style tanks
• (2) 1.25 inch Tubes
• 16 fins per inch
• Corrugated fins that give more surface area and more thermal transfer
• Pressure tested
• For auto/manual trans
• Direct fitment for 66-77 Bronco
• Old Part Number: RPE574AK

Radiator Specs

• Core Height 18.5 inch
• Core Width 19.2 inch
• Overall Height 20.2 inch
• Overall Width 24.75 inch
• Overall Thickness 6 inch
• Tubes (2) 1.25 inch Tubes
