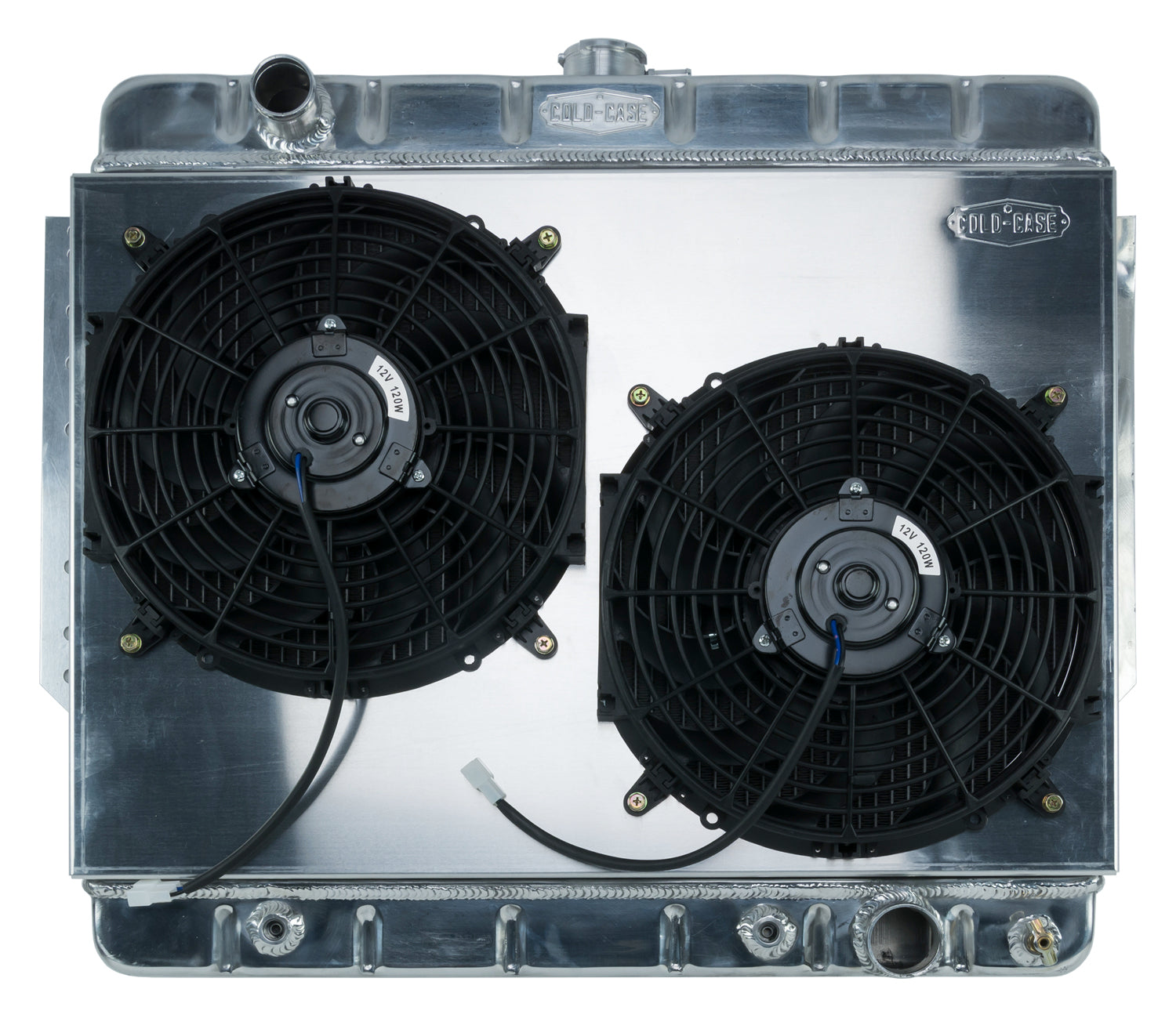

66-68 Impala Aluminum Radiator and Dual 12 Inch Fan Kit Stamped Cold Case Radiators

66-68 Impala Aluminum Radiator and Dual 12 Inch Fan Kit Stamped.

These COLD-CASE radiators are Tig welded 100 percent aluminum and absolutely beautiful.

Don't buy a 3 or 4 row aluminum radiator! It doesn't cool as good as these oversize 2 row models. These radiators are original appearing and have the correct stamping. Once painted, you'd be hard pressed to find a difference over an original versus a COLD-CASE.

• 100 percent TIG welded
• Fan Diameter 12 Inch
• All Aluminum
• Polished OE style tanks
• (2) 1.25 inch Tubes
• 16 fins per inch
• Corrugated fins that give more surface area and more thermal transfer
• Pressure tested
• For auto/maunal trans
• Direct fitment for 61-65 Impala
• Old Part Number: RPE566K

Radiator Specs

• Core Height 17.5 inch
• Core Width 25.1 inch
• Overall Height 23 inch
• Overall Width 28.75 inch
• Overall Thickness 6 inch
• Upper Hose 1.5 inch
• Lower Hose 1.75 inch
• Tubes (2) 1.25 inch Tubes
