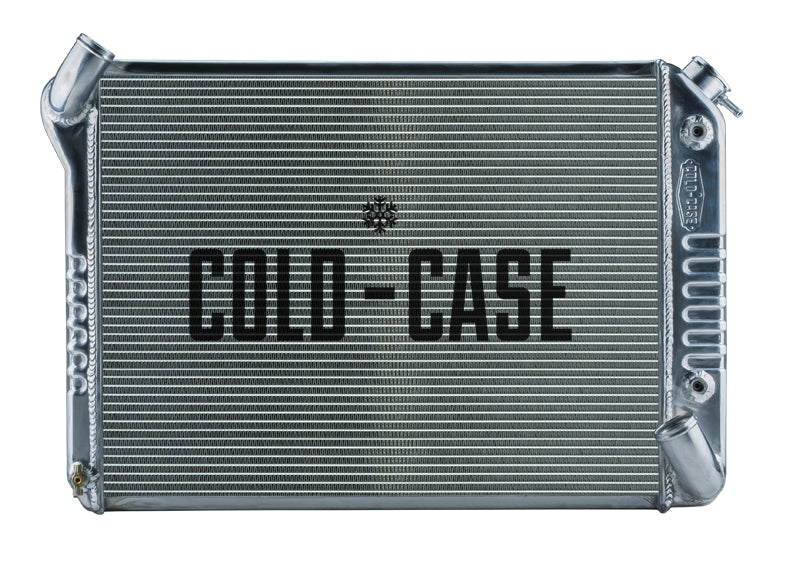

66-68 Corvette BB Aluminum Performance Radiator Cold Case Radiators

1966-1968 Chevy Corvette Big Block Aluminum Performance Radiator. AT/MT Cars. May need to replace with longer drain plug to clear shroud.

These COLD-CASE radiators are Tig welded 100 percent aluminum and absolutely beautiful. Don't buy a 3 or 4 row aluminum radiator! It doesn't cool as good as these oversize 2 row models.
These radiators are original appearing and have the correct stamping. Once painted, you'd be hard pressed to find a difference over an original versus a COLD-CASE.

• 100 percent TIG welded
• All Aluminum
• Polished OE style tanks
• 16 fins per inch
• Corrugated fins that give more surface area and more thermal transfer
• Pressure tested
• For auto/maual trans
• Direct fitment for 66-68 Corvette w/ Big Block
• Old Part Number: RPE713

Radiator Specs

• Core Height 17.25 inch
• Core Width 22.6 inch
• Overall Height 19.5 inch
• Overall Width 28 inch
• Overall Thickness 3 inch
• Tubes (2) 1 inch Tubes
• Upper Hose 1.57 inch
• Lower Hose 1.77 inch
