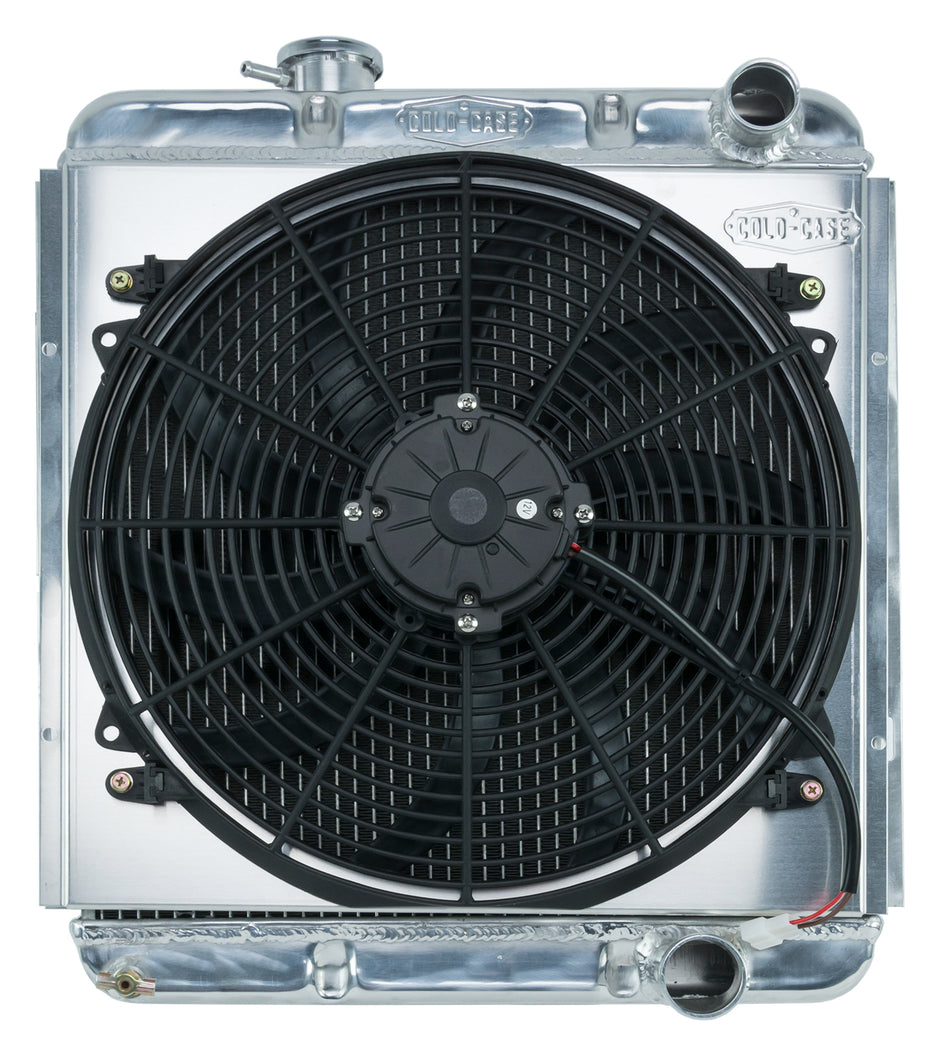

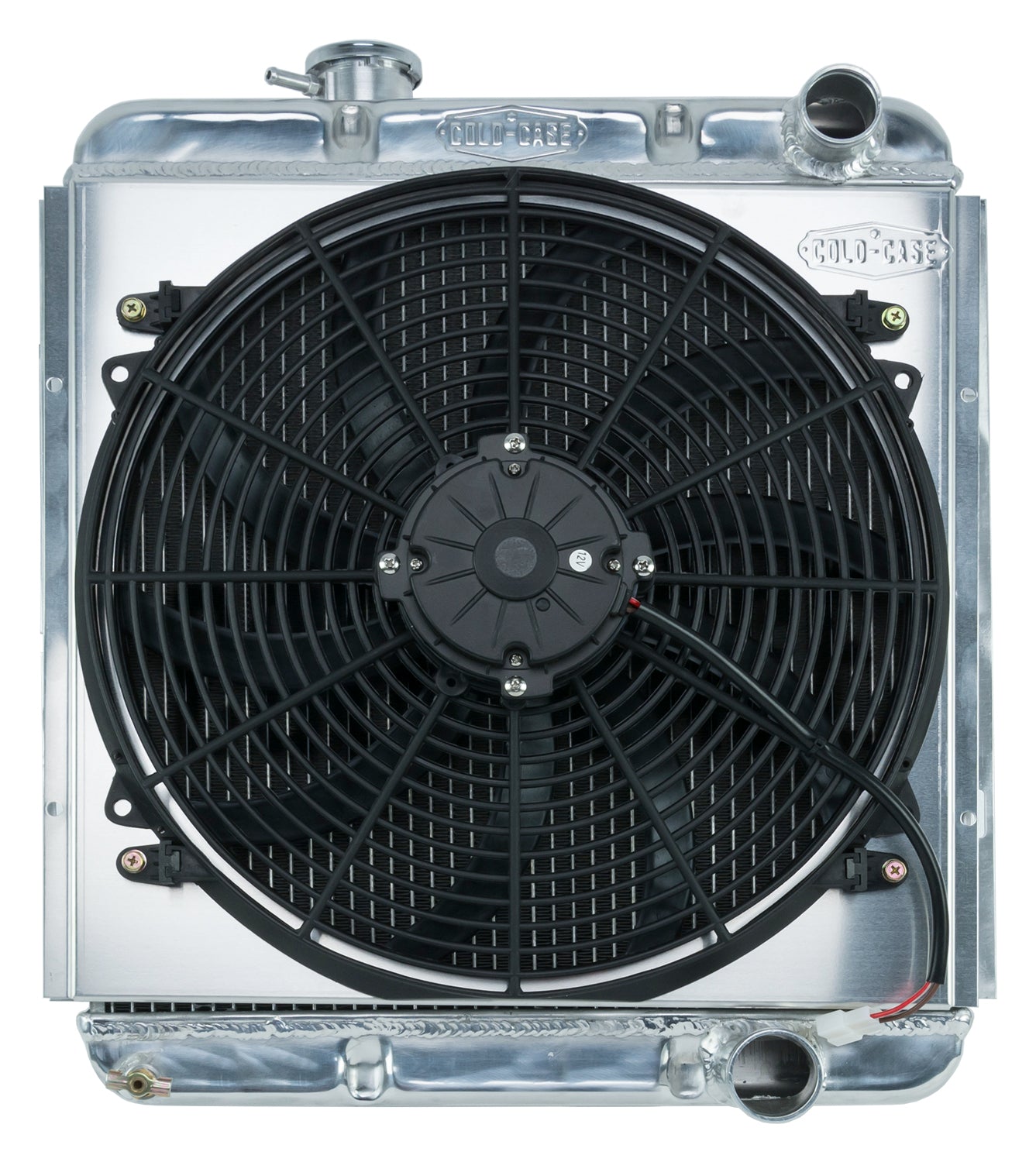

65-66 Ford Mustang 289 Aluminum Performance Radiator And 16 Inch Fan Kit AT Cold Case Radiators

65-66 Ford Mustang 289 Aluminum Performance Radiator And 16 Inch Fan Kit AT Cars. These COLD-CASE radiators are Tig welded 100 percent aluminum and absolutely beautiful.
Don't buy a 3 or 4 row aluminum radiator! It doesn't cool as good as these oversize 2 row models. Original fan shroud will mount with original mounting brackets.
These radiators are original appearing and have the correct stamping. Once painted, you'd be hard pressed to find a difference over an original versus a COLD-CASE.

• 100 percent TIG welded
• Fan Diameter 16 Inch
• All Aluminum
• Polished OE style tanks
• 16 fins per inch
• Corrugated fins that give more surface area and more thermal transfer
• Pressure tested
• For auto trans
• Direct fitment for 65-66 Mustang w/ 289 V8
• Old Part Number: RPE564AK

Radiator Specs

• Core Height 16.5 inch
• Core Width 16.25 inch
• Overall Height 20.5 inch
• Overall Width 18.38 inch
• Overall Thickness 6 inch
• Tubes (2) 1.25 inch Tubes
