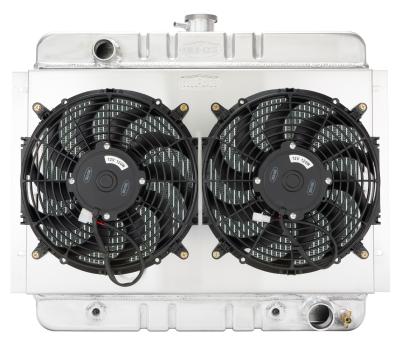

62-67 Chevy Nova Aluminum Radiator And Dual 12 Inch Fan Kit Automatic Transmission Cold Case Radiators

62-67 Chevy Nova and Chevy II Aluminum Radiator And Dual 12 Inch Fan Kit. Automatic Transmission. Will also fit Inline 6 applications with flat fronted fan. This module replaces our single fan unit to give you more clearance to the accessory drive. Requires the use of a short water pump.

These Cold-Case radiators are Tig welded 100 percent aluminum and absolutely beautiful.

Don't buy a 3 or 4-row aluminum radiator! It doesn't cool as good as these oversize 2-rowwell models. These radiators are original appearing and have the correct stamping. Once painted, you'd be hard pressed to find a difference over an original versus a Cold-Case.
Features:

• 100 percent TIG welded
• Fan Diameter 12 Inch
• All Aluminum
• Polished OE style tanks
• (2) 1 inch Tubes
• 16 fins per inch
• Corrugated fins that give more surface area and more thermal transfer
• Pressure tested
• For automatic trans
• Direct fitment for 62-67 Nova

Radiator Specs:

• Core Height 15.35 inch
• Core Width 22.35 inch
• Overall Height 20.7 inch
• Overall Width 25.75 inch
• Overall Thickness 6.75 inch
• Tubes (2) 1 inch Tubes
• Upper Hose 1.50 inch
• Lower Hose 1.75 inch
• Trans Cooler Fitting Size: 5/16 Inverted Flare
