Description

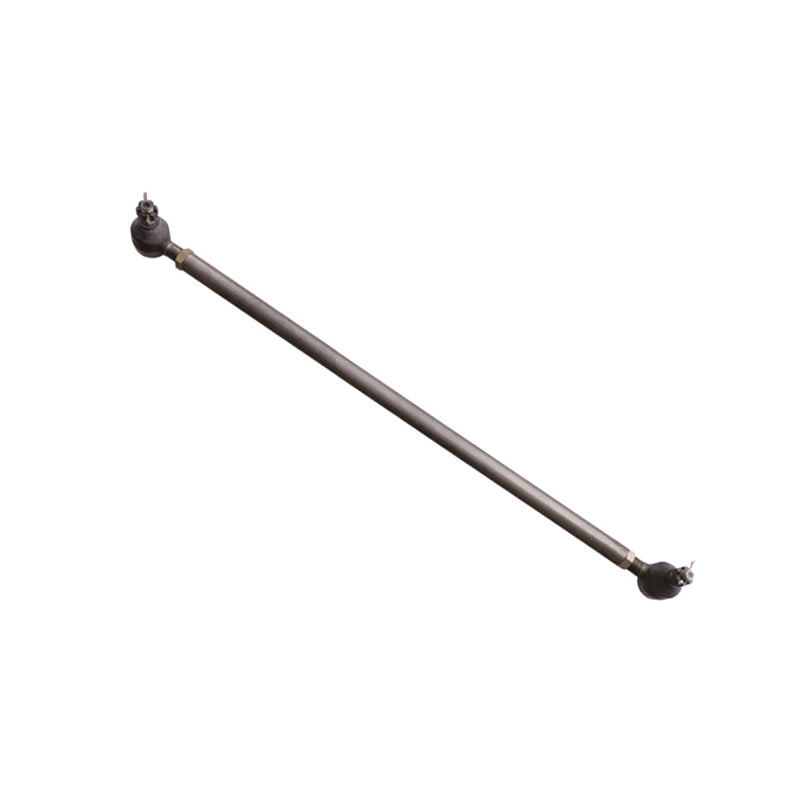

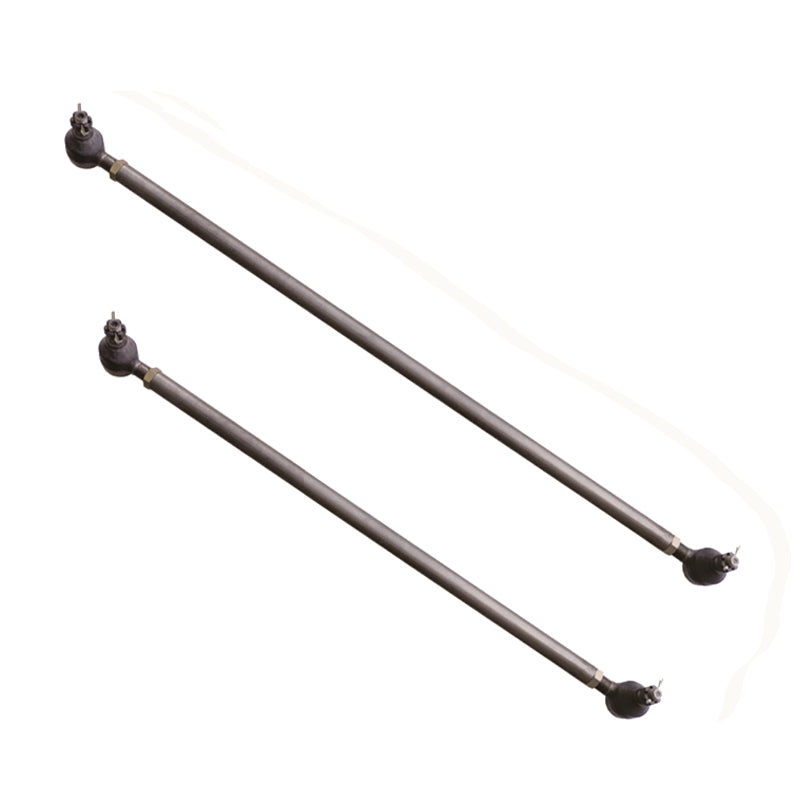

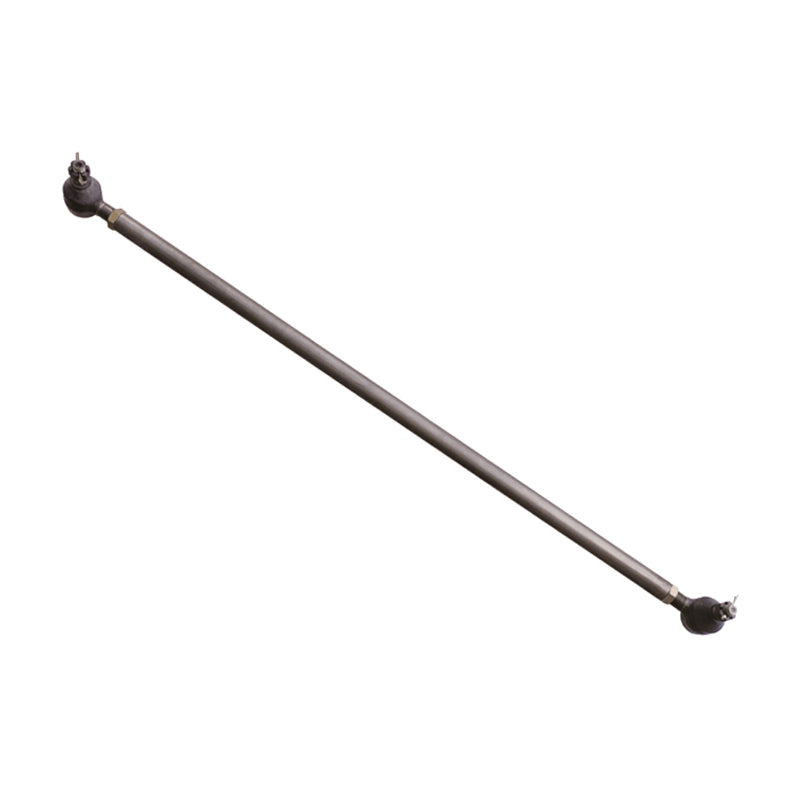

POSIES Tie Rod / Drag Link Kits completes your steering system from the steering box to the wheels. Made from 7/8" tubing, the links are threaded with right hand and left hand 11/16"-18 threads to allow alignment adjust ability.
Product Details:
- 7/8" Tubing
- Right and Left Hand 11/16"-18 threads
- Ford Style 7° Tapered Tie Rod Ends w/Jamb Nuts
Application Chart by Axle King Pin Centers:
Tie Rod Center to Center Length w/Tie Rods Installed
| 46" Axle | 43 3/8" |
| 47" Axle | 44 3/8" |
| 47 3/4" Axle | 44 3/4" |
| Stock Ford Axle | 48 1/8" |
Drag Link Center to Center Length w/Tie Rods Installed
| 46" Axle - Cross Steer | 29 1/2 |
| 47" Axle - Cross Steer | 30 1/2" |
| 47 3/4" Axle - Cross Steer | 31 1/2" |
| Stock Ford Axle - Cross Steer | 34 1/8" |

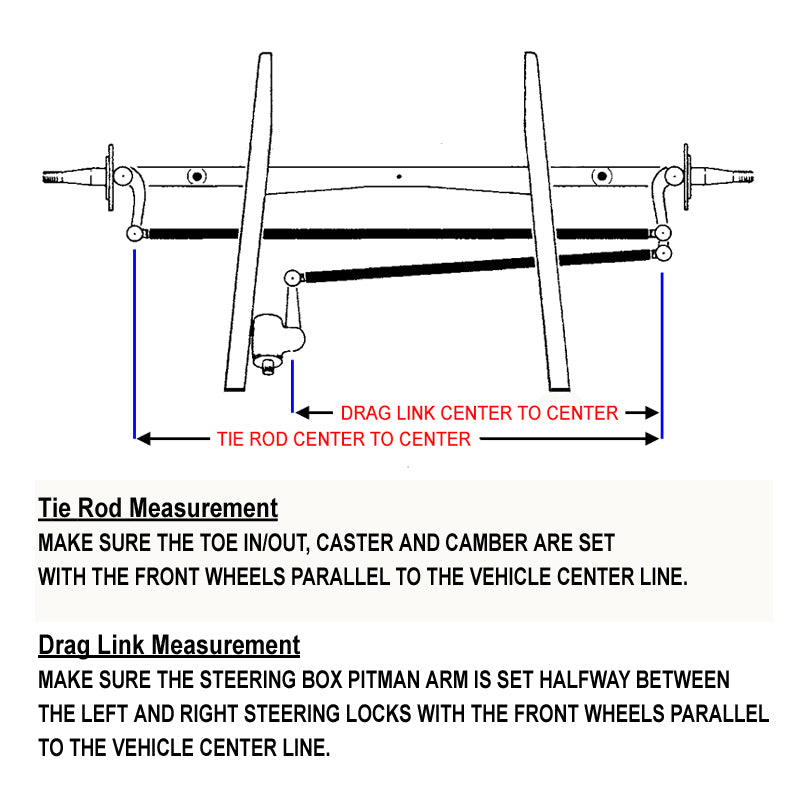

Verify Measurement of your Tie Rod and Drag Link
NOTE: When measuring for the Tie Rod, make sure the Toe In/Out, Caster and Camber are set with the front wheels parallel to the vehicle center line. When measuring for the Drag Link, make sure the steering box pitman arm is set halfway between the left and right steering locks with the front wheels parallel to the vehicle center line.
Product Options:

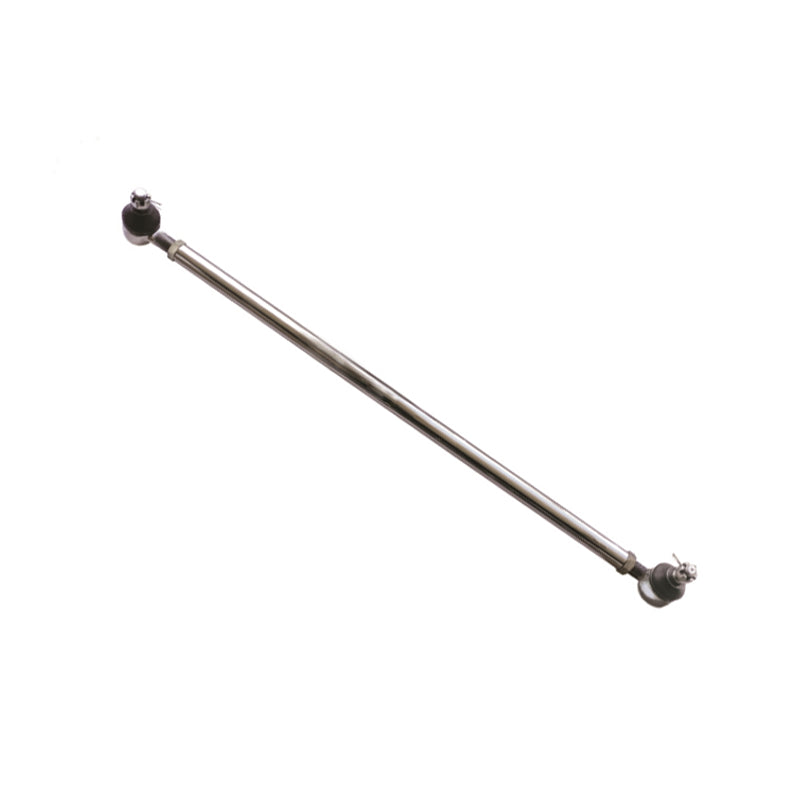

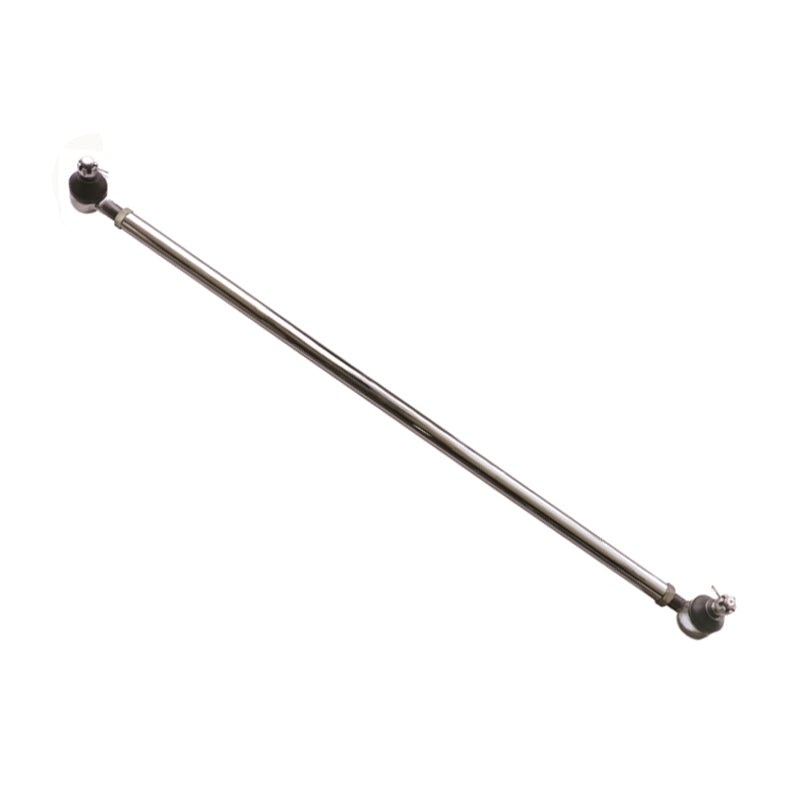

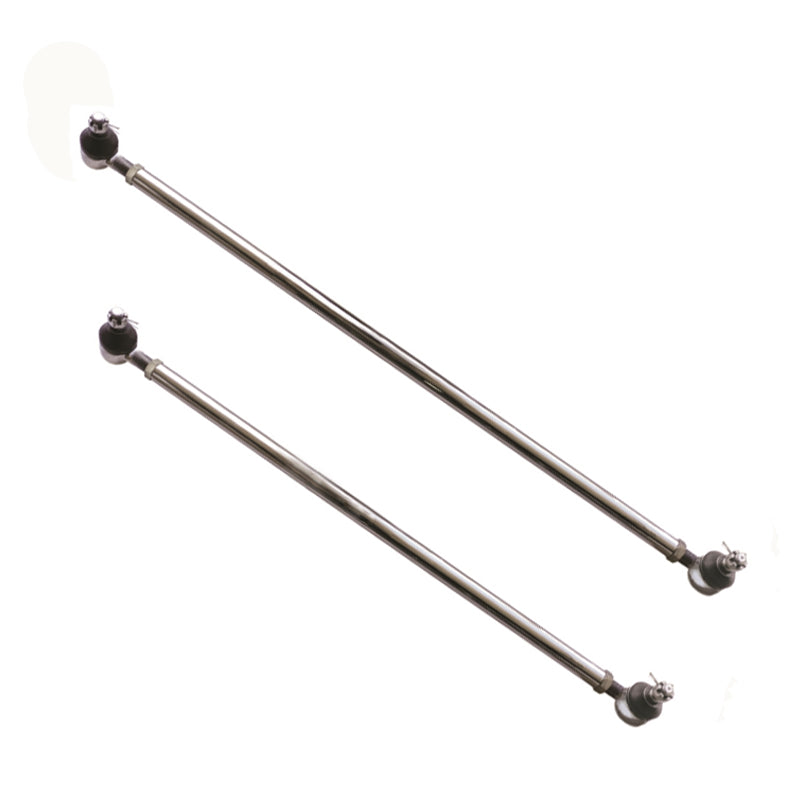

Plain or Chrome
Sold as a Kit
Product Dimensions:
Box : 45 x 4 x 3
Weight: 4 - 7 lbs
