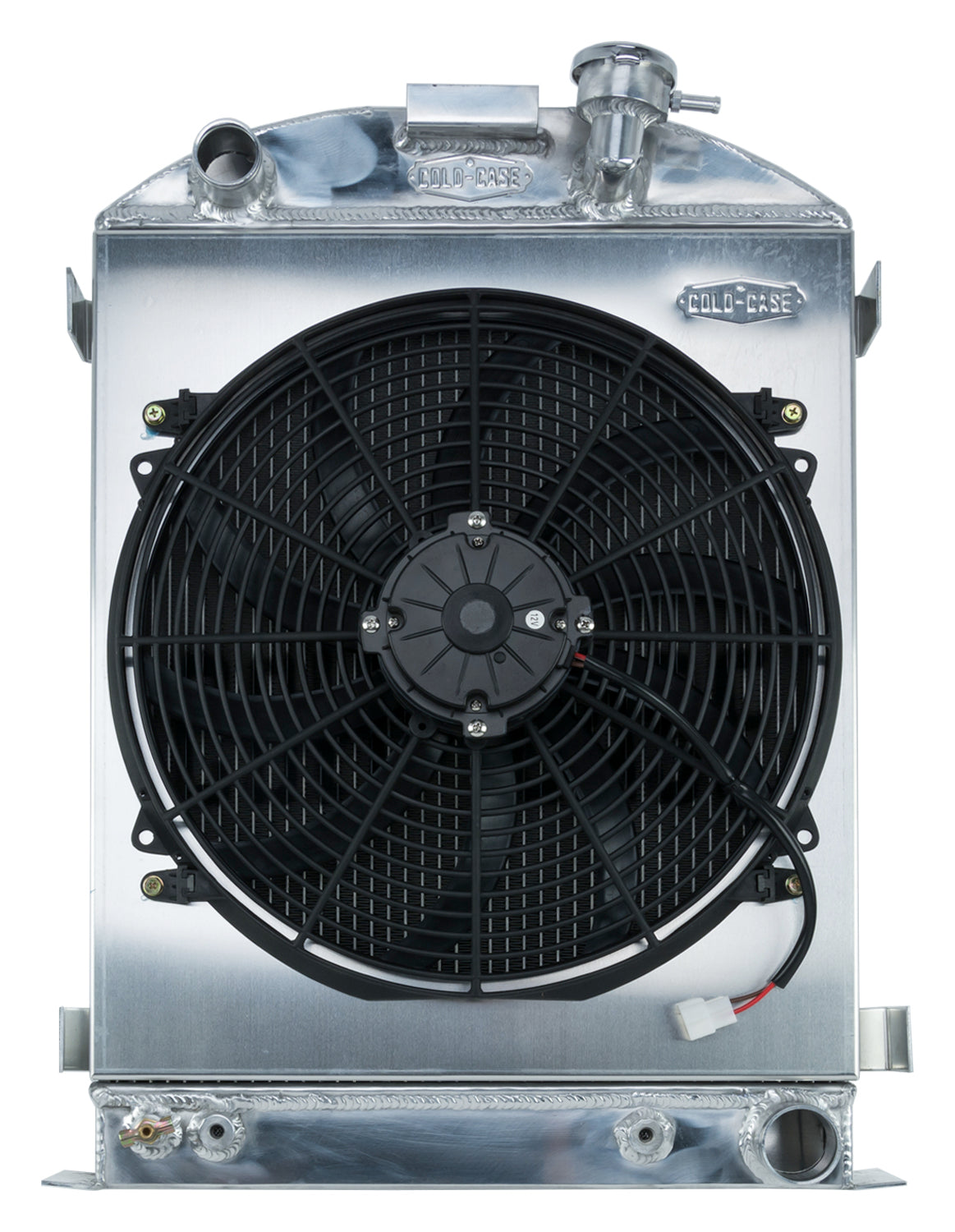

1932 Highboy Chevy Engine 25.5 Inch Aluminum Performance Radiator and 16 Inch Fan Kit Cold Case Radiators

1932 Highboy Chevy Engine Aluminum Performance Radiator and 16 inch fan kit. These COLD-CASE radiators are Tig welded 100 percent aluminum and absolutely beautiful.
Don't buy a 3 or 4 row aluminum radiator! It doesn't cool as good as these oversize 2 row models.

These radiators are original appearing and have the correct stamping. Once painted, you'd be hard pressed to find a difference over an original versus a COLD-CASE.

• 100 percent TIG welded
• Fan Diameter 16 Inch
• All Aluminum
• Polished OE style tanks
• 16 fins per inch
• Corrugated fins that give more surface area and more thermal transfer
• Pressure tested
• Direct fitment for 32 Highboy w/ Chevy Engine
• Old Part Number: RPE902K

Radiator Specs

• Core Height 17 inch
• Core Width 17.2 inch
• Overall Height 22.5 inch
• Overall Width 19.75 inch brackets
• Overall Thickness 6 inch
• Tubes (2) 1 inch Tubes
• Upper Hose 1.50 inch
• Lower Hose 1 inch
