1928-34 Ford Spring Perches - 1060 Series

1928-34 Front Spring Perches for use with 1 3/4" wide springs using 3/4" bushings. The perch shank is 4 3/8" long with 5/8"-18 threads allowing the installation of a lower shock mount.

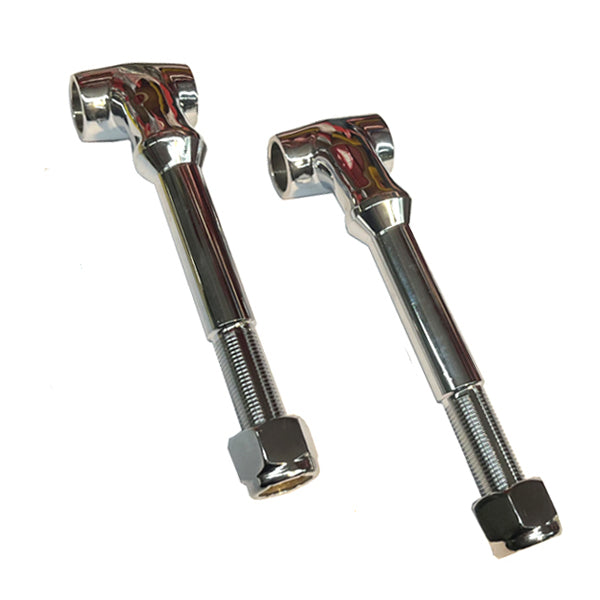

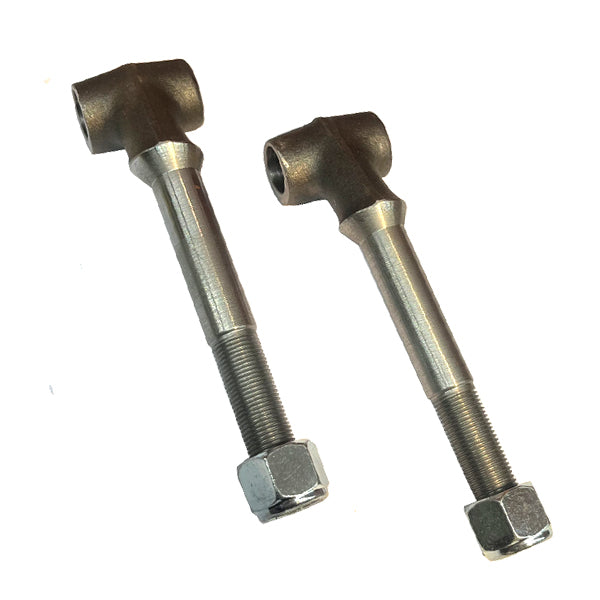

Standard Perches offer a fixed head for a traditional appearance providing a set geometry when the front spring is installed.

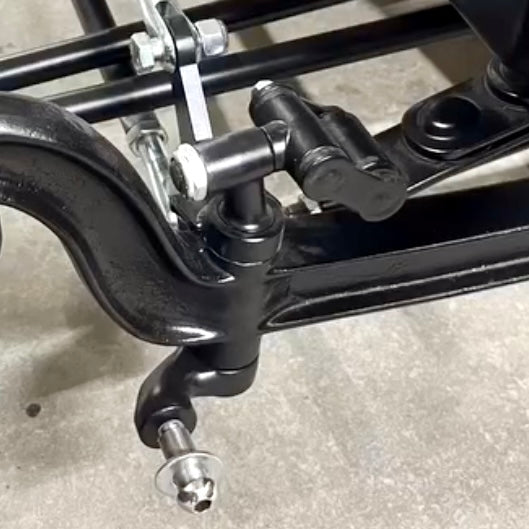

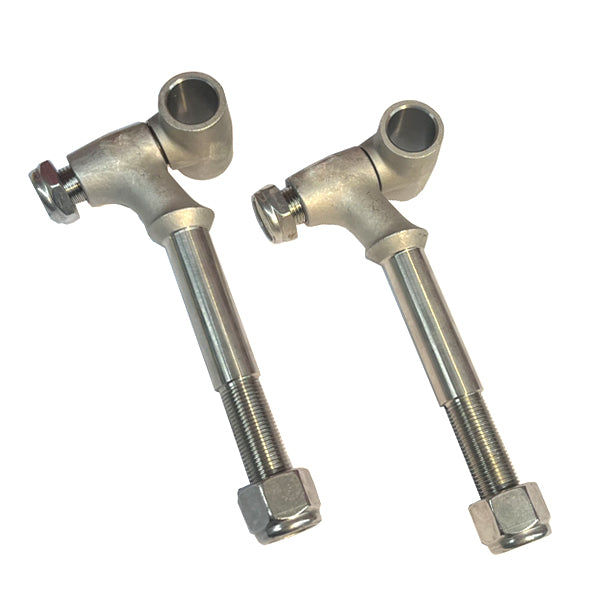

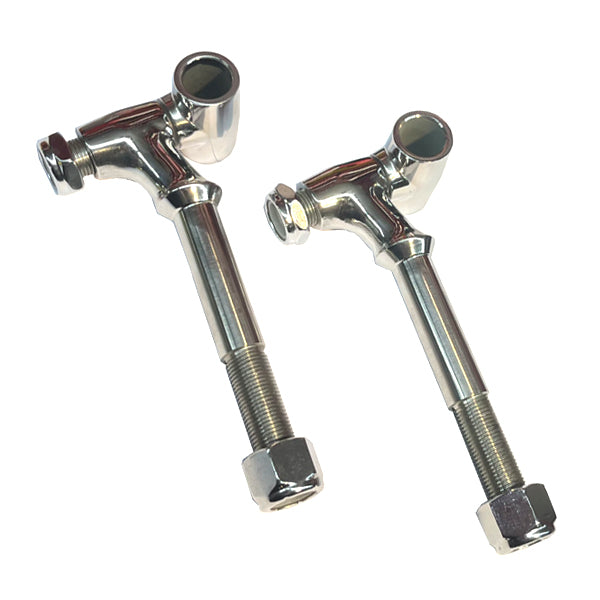

Adjustable Perches offer additional caster adjustment by the use of a swivel head. The head allows spring to axle alignment/caster issues to be eliminated. Considered a must when using a stock frame and crossmember or when there is an alignment issue.

Flat Top Perches are used to connect an axle to 4-Bars, Hairpins or Wishbones when mounting the spring behind the axle (Suicide Style) . Comes with tapered washers,

Note: If using 1935 or later wishbones in your 1928-34 Ford, you will need to machine down the top of the wishbone for the spring perches to fit through and extend out the bottom of the wishbone.

Sold as Pair

Available: Plain, Chrome, Unpolished Stainless Steel and Polished Stainless Steel.

Packaged dimensions: 8 x 4 x 2
Weight: approx. 2.0 lbs
