1928-34 Ford Front Axles - 4000 Series

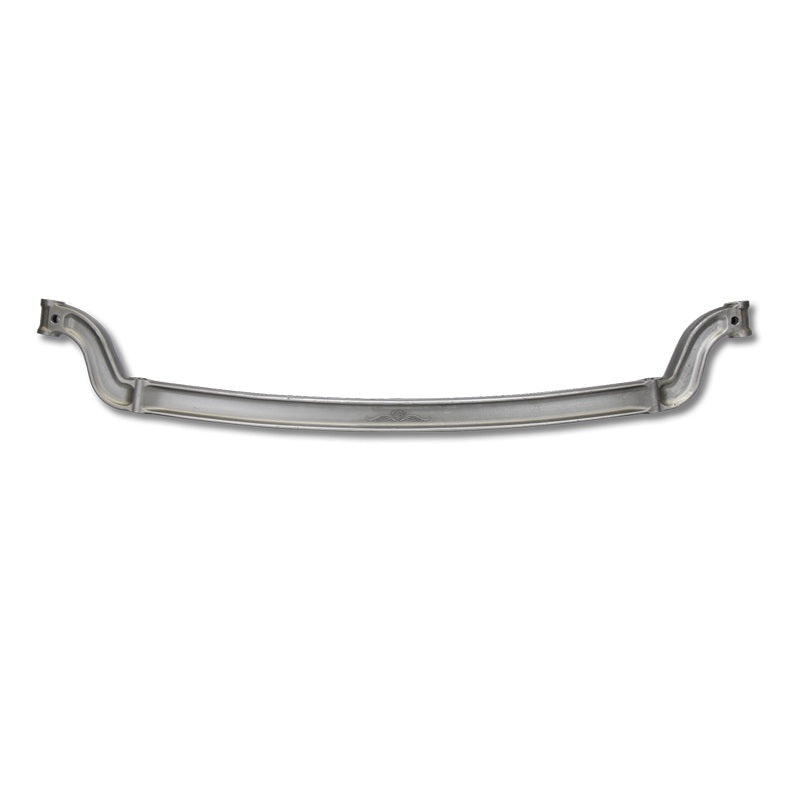

POSIES offers Super Bell Axles for 1928-34 Fords, the industry standard for Hot Rod Axles. 4" dropped axles provide a 2" drop over a stock specification axle, when combined with a POSIES reverse eye SuperSlide Spring, drops of 5" can be attained to achieve the classic lowered Hot Rod stance. I-Beam axles provide traditional looks and help with a compliant ride while tube axles give you a smooth look.

Product Information:

• Narrow axles are used with fendered cars to provide adequate tire clearance
• Wide axles are best used with fenderless cars where tire clearance is not a concern
• Axle widths are measured king pin to king pin
• 2 1/4" Perch bosses are the most common. 2" is only required when using original Ford wishbones with 2" perch bosses
• 1932 Heavy axle is a stock height, reproduction axle used where a stock ride height is desired

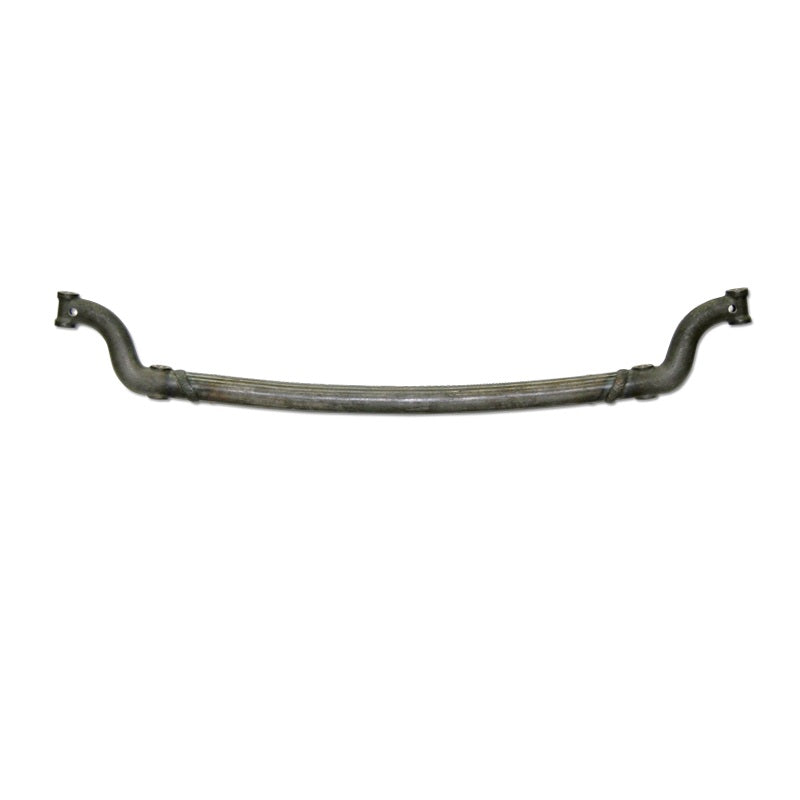

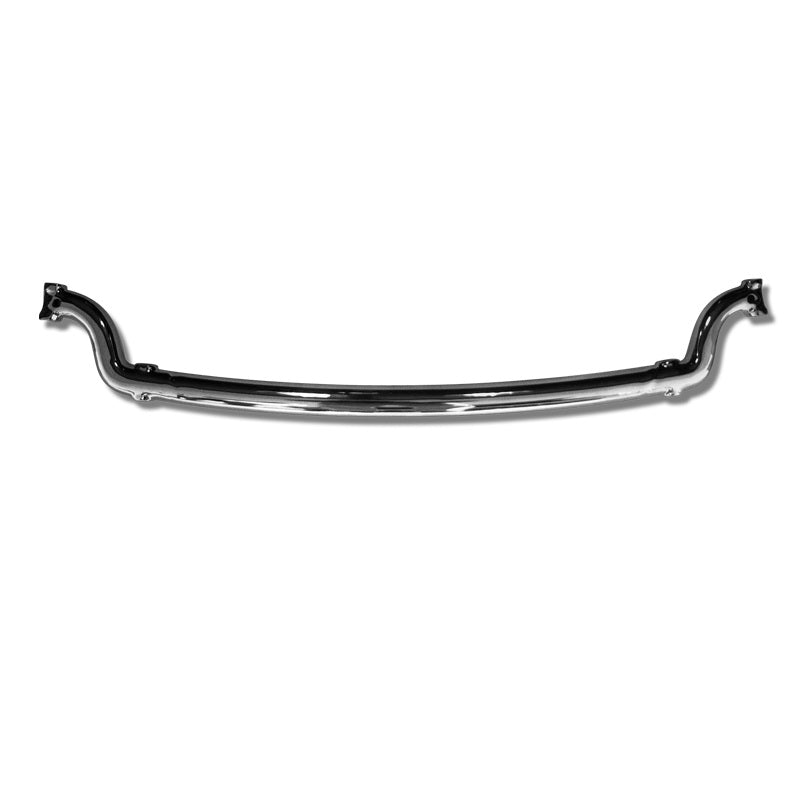

• Tube Axles should not be used with wishbones, 4-bar and hairpins only. I-Beam axle flex/twists with wishbones where tube axles will not

SuperSlide Spring Pairings

Narrow Axles 34" Perch Centers - 29" 1005 Series
Wide Axles 36" Perch Centers - 31" 1002 Series
1932 Heavy Axle 36 1/2" Perch Centers - 31 1/2" 1001 Series

Sold Each

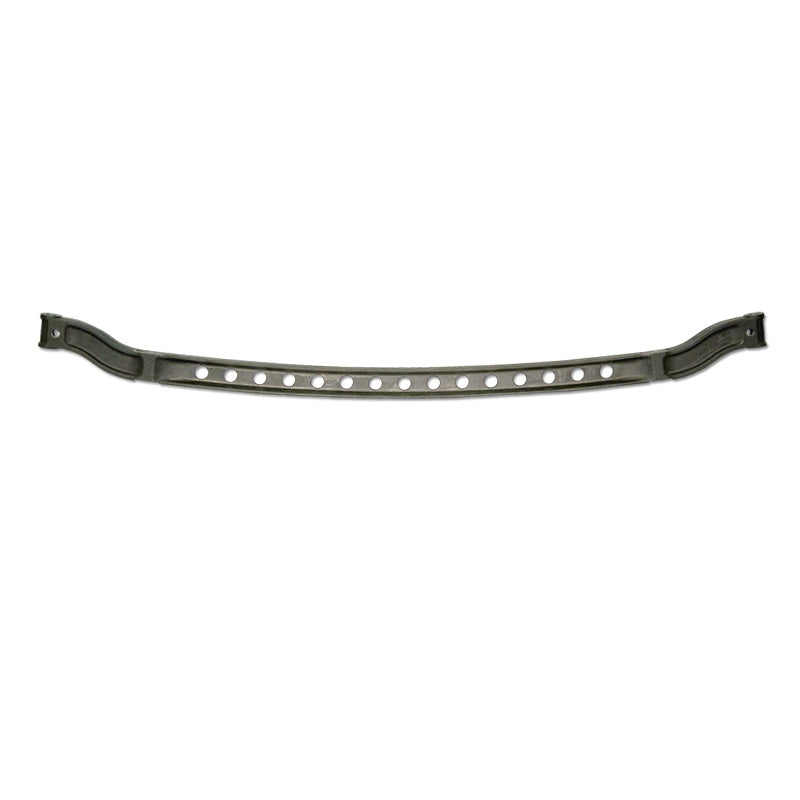

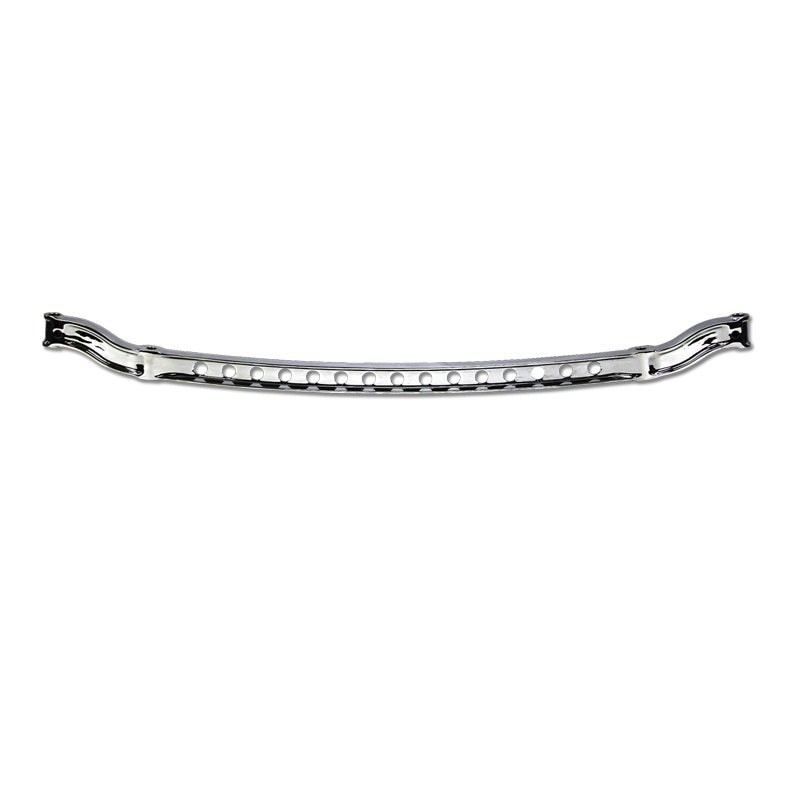

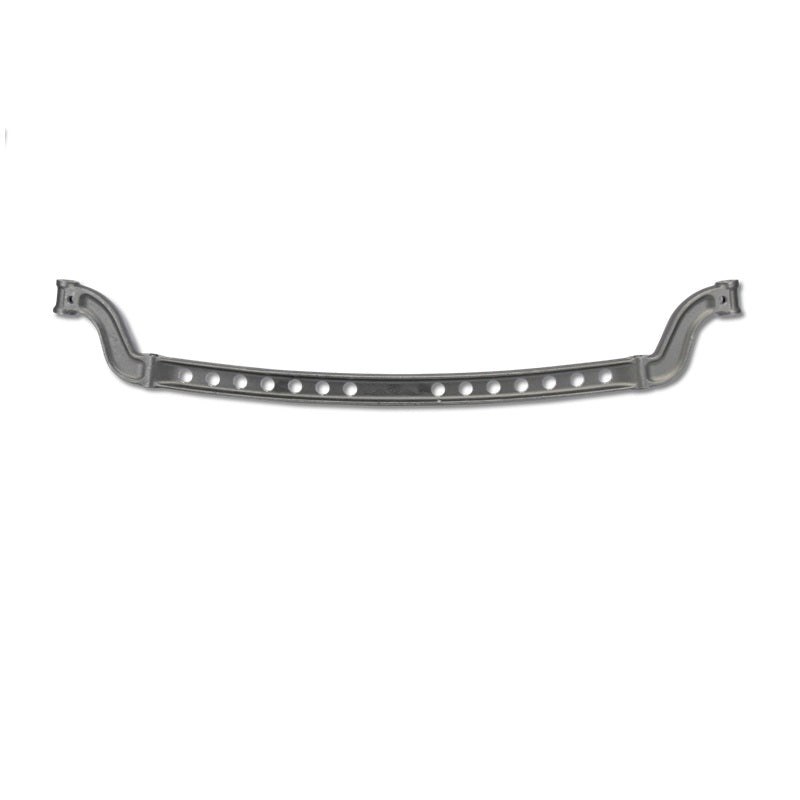

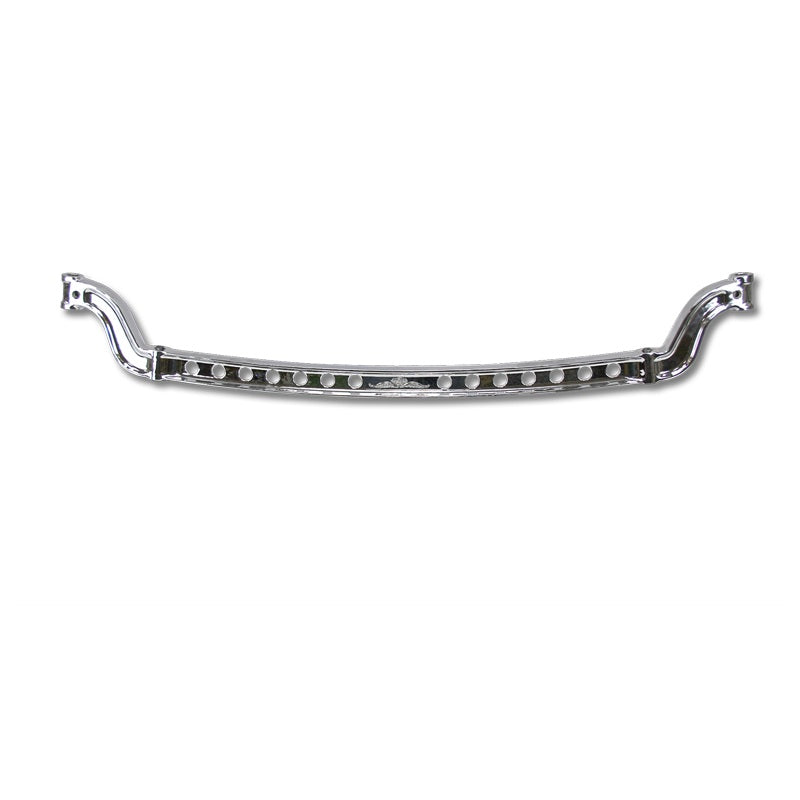

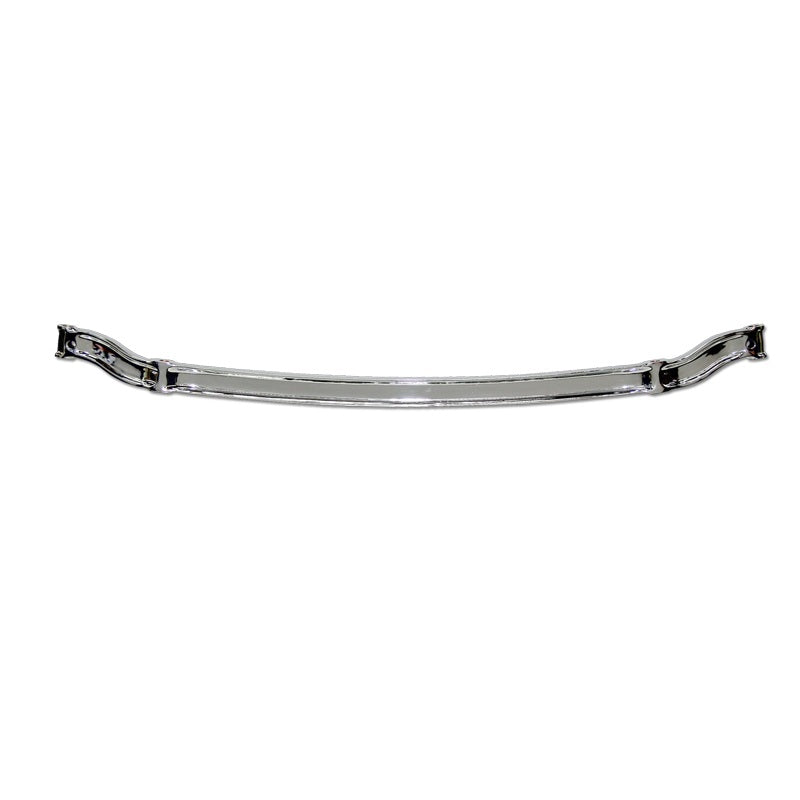

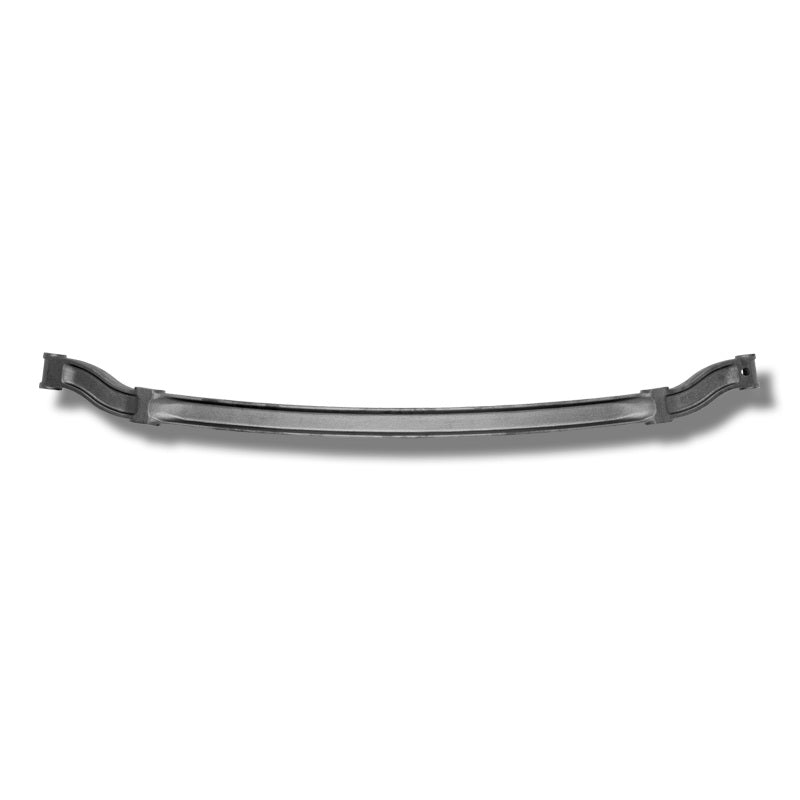

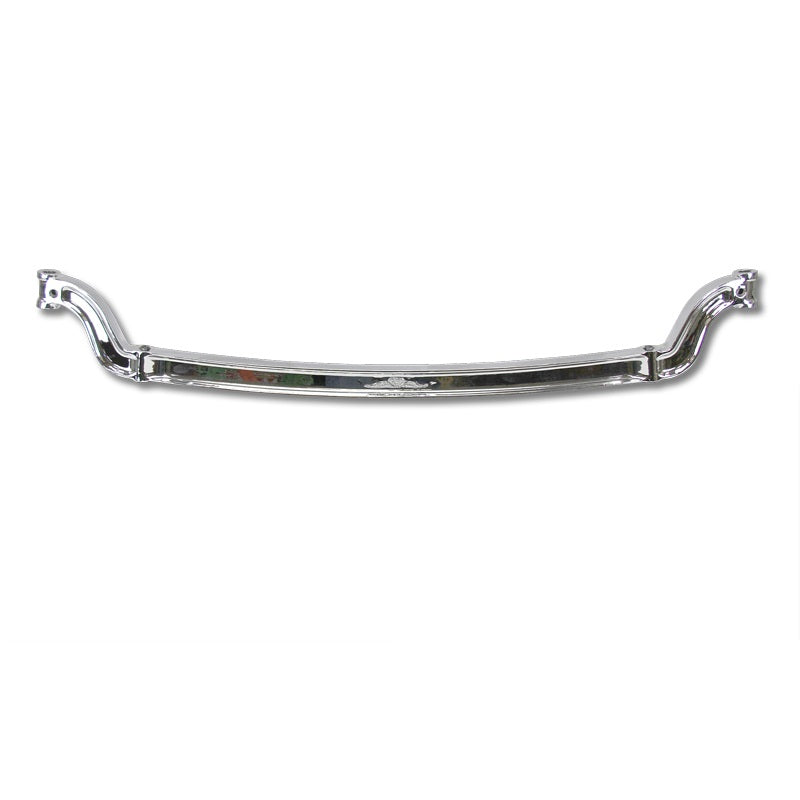

Available: Plain, Drilled, Chrome or Drilled and Chrome

Product Dimensions: 50 x 8 x 2
Weight: approx. 22.0 lbs
